PATCH CORDS & MOLDED CABLE ASSEMBLIES
FAX: 773 792-2129 COMBINATION AND MIL-TYPE PATCH CORDS
* Please visit the product pages on our website for the most up-to-date product information

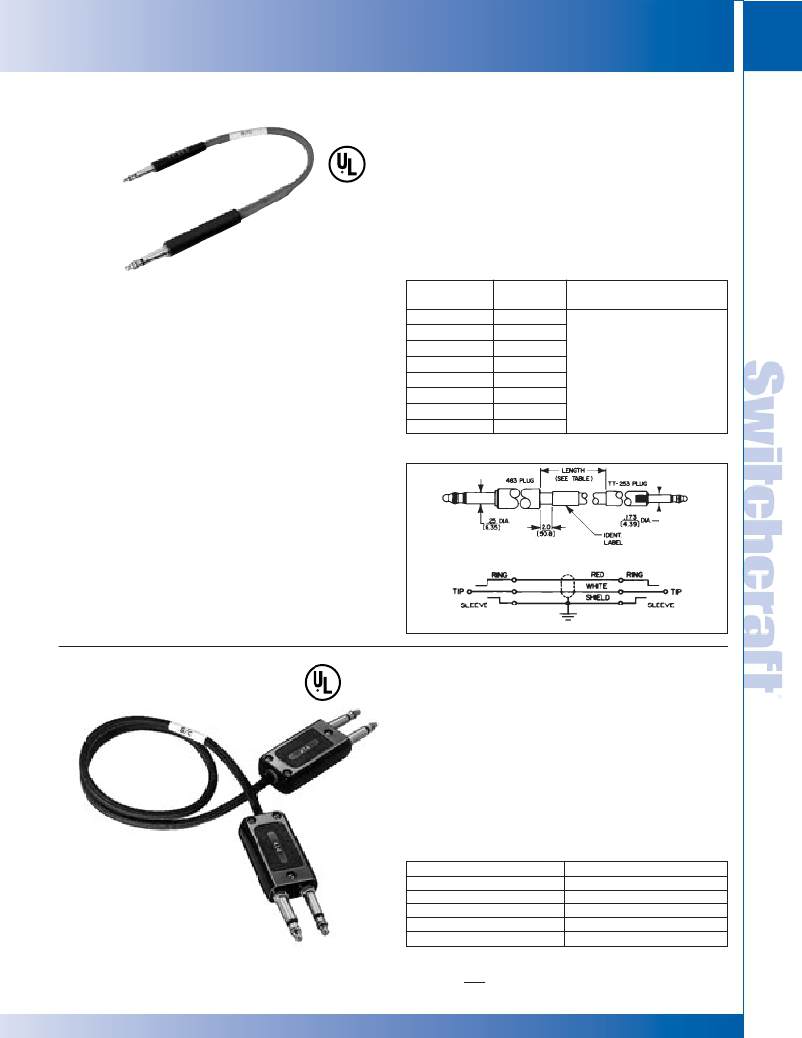

COMBINATION PATCH CORDS
? SERIES CPC103: Standard 2-conductor, 413 Twin-Plug
(.25 " outside diameter finger) on one end with cable-connected
shield to sleeve; two independent tip circuits. Other end
miniature, TT261, TT Twin-Plug (.173" outside diameter finger)
in the same wiring. 6, 10, 15, 20 and 25 foot lengths.
263
CPC102A
Series CPC Combination Patch Cords provide convenient
? SERIES CPC104: Standard 3-conductor, 414 Twin-Plug
(.25 " outside diameter finger) on one end; miniature
3-conductor, TT263, TT Twin-Plug on other end. Wired at
5-conductor tips-to-tips, rings-to-rings, all sleeves to cable
shield. 6, 10, 15, 20 and 25 foot lengths.
Part
interconnections between standard telephone-type jacks
(3-conductor, .25" inside diameter sleeve) and miniature
telephone-type jacks (3-conductor, .173" inside diameter).
Series CPC cords are ideal for connection in telephone, data
processing and other telecommunication applications where
both standard and miniature jacks are available for patching.
FEATURES
1. Rugged, telephone-quality tinsel conductors, with slate gray,
Number
? CPC102A
? CPC102D
? CPC102F
? CPC102K
? CPC102N
? CPC102R
? CPC102T
Length
6 inches
2 feet
3 feet
6 feet
10 feet
15 feet
20 feet
Description
Standard 3-conductor (483)
telephone plug (.25" outside
diameter finger) on one end;
miniature (253) tini-telephone ?
3-conductor (.173" outside
diameter. finger) plug on
other end.(See Schematic).
braided thermoplastic jacket with flex relief reinforcements at
point of entry into each plug handle.
? CPC102U 25 feet
? Special order only; contact factory for price and delivery.
2. Series CPC cords, eliminates the need for a separate
adapter or field-fabricated combination cords.
3. Switchcraft (on special order) can assemble cords of any
practical length.
? SERIES CPC101: Standard 2-conductor, 413 Twin-Plug
(.25" outside diameter finger) on one end; miniature,
3-conductor TT253, TT Twin-Plug (.173" outside diameter
finger) on the other end. One twin plug tip to miniature plug
ring. All sleeves connected to cable shield. 6, 10, 15, 20 and
25 foot lengths.
MIL-TYPE 1/4" TWIN PATCH CORDS
SERIES 22Q: For use in telephone patching, broadcasting,
studio recording, high-quality public address systems,
Series 22Q
telephone, telecommunications, and instrumentation systems.
Uses 4-conductor shielded cord with Switchcraft Number 414
Twin-Plug ? connected to each end. Shield is grounded to
sleeve of each plug and individual leads wired tip-to-tip and
ring-to-ring. Twin-Plug 414 is a 6-circuit plug with electrically
independent tip circuits and ring circuits, with plug fingers
spaced on .625" center to fit standard twin jacks.
A self-aligning feature accommodates errors in jack location.
Standard lengths: 1 feet to 10 feet; standard color: black. Other
lengths and colors are available.
Part Number
? 22QB22
? 22QD22
? 22QF22
? 22QK22
? 22QN22
Length, feet (m)
1 (.305)
2 (.610)
3 (.914)
6 (1.829)
10 (3.048)
? Special order only; contact factory for price and delivery.
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
